Aba Three Layers Pe Pipe Production Line
Category:
PE pipe Making Machine
Enquiry hotline:
E-mail:
whatsapp:
Product details
Product
|
Name: |
Pipe diameter（mm） |
Pressure(PN,MPa) |
|
HDPE pipe |
75-250mm |
0.4/0.6/0.8/1.0/1.25 |
Wroking condition:
|
humidity |
0-40℃ |
|
Power source |
3 phase 380v, 50Hz |
|
Installation power |
About 315kw |
|
Cooling water |
≤15℃ ≥0.3Mpa ～100L/min |
|
size |
40*3*2.6m（l*w*h） |
|
capacity |
300-400kg/h |
Production line compositon
|
Name |
|
Every part name |
No. |
|
ABA three layers PE pipe production line
|
1 |
Automatic material feeding and drying system |
2 |
|
2 |
SJ-75/38 high speed single screw extruder |
1 |
|
|
3 |
SJ-55/33 single screw extruder |
1 |
|
|
4 |
SJ-25/25 single screw extruder |
1 |
|
|
5 |
Three layers die-head |
1 |
|
|
6 |
Vacuum sizing tank |
1 |
|
|
7 |
Spray cooling water tank |
2 |
|
|
8 |
Haul off machine |
1 |
|
|
9 |
Cutting machine |
1 |
|
|
10 |
Pipe stacker |
1 |
|
|
11 |
Electric cabinet |
3 |
Main technical parameter：

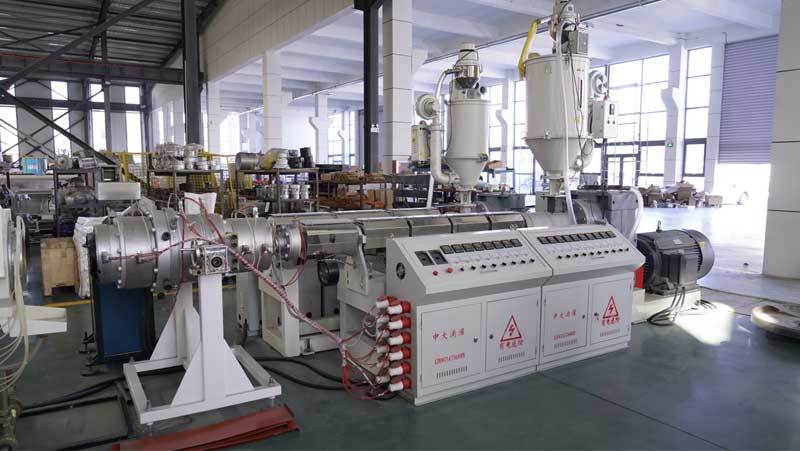

High speed and high efficiency extruder：
With optimized high-speed screw and new slotted sleeve design, the extruder has the following characteristics: high plasticization rate, uniform melt and continuous and stable production High performance gearbox reducer has large torque, long service life and low noise.
After quenching and tempering and nitriding heat treatment, the screw barrel has the characteristics of high temperature resistance, wear resistance, corrosion resistance and high strength, which greatly increases the service life; Reasonable and unique design of plasticizing section makes the surface of products smooth and glossy.

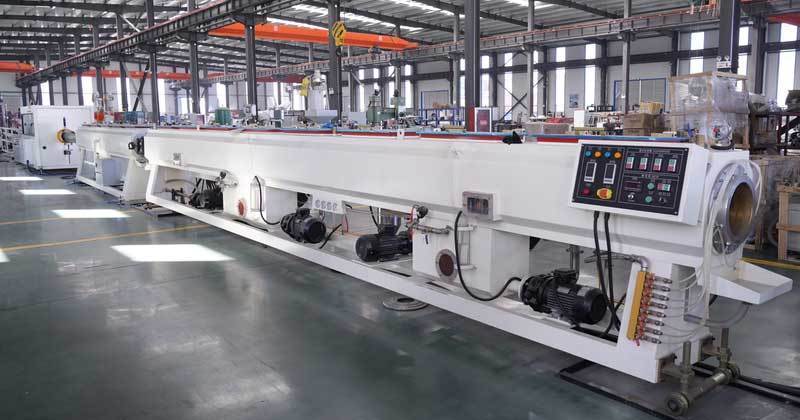

Vacuum sizing and cooling system:
Sizing system: A variety of alloys synthesize high-strength wear-resistant brass, with uniform distribution of cooling water and fast cooling speed.
Vacuum system: advanced pipeline layout design, good vacuum sealing and better cooling effect.

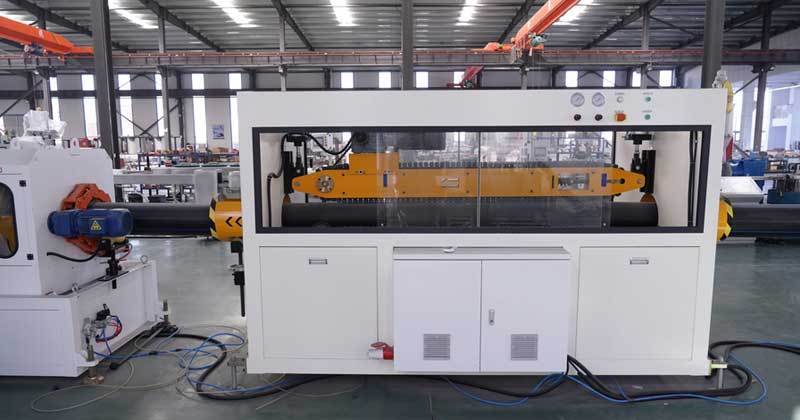

Haul off machine
Three-track Haul-off
frequency converter regulation
Cutting machine
Universal cutting without changing fixture
The cutting range is set according to the demand
