LD2800 Agriculture mulch film making machine
Category:
Greenhouse film making machine
Enquiry hotline:
E-mail:
whatsapp:
Product details
Product：
|
Name: |
Tape diameter（mm） |
thickness（mm） |
|
Mulch film |
2600mm |
0.08-0.015mm |
Wroking condition:
|
humidity |
0-40℃ |
|
Power source |
3 phase 380v, 50Hz |
|
Installation power |
About 120kw |
|
Cooling water |
≤15℃ ≥0.3Mpa ～100L/min |
|
size |
8*3.5*8.5m（l*w*h） |
|
capacity |
120-180kg/h |
Production line compositon
|
Name |
|
Every part name |
No. |
|
LD2800 agricultural mulch film blowing machine
|
1 |
Automatic material feeding and drying system |
1 |
|
2 |
SJ-90/30 single screw extruder |
1 |
|
|
3 |
Die-head |
1 |
|
|
4 |
Frame of the machine(8.5m) |
1 |
|
|
5 |
Air cooling system |
1 |
|
|
6 |
Traction part |
1 |
|
|
7 |
Automatic winding machine |
1 |
|
|
8 |
Electric cabinet |
1 |
Main technical parameter：
Automatic material feeding and drying system
Automatic material feeding
Automatic drying
High efficiency extruder：
high output,low energy consumption and low noise
After quenching and tempering and nitriding heat treatment, the screw barrel has the characteristics of high temperature resistance, wear resistance, corrosion resistance and high strength, which greatly increases the service life; Reasonable and unique design of plasticizing section makes the surface of products smooth and glossy.

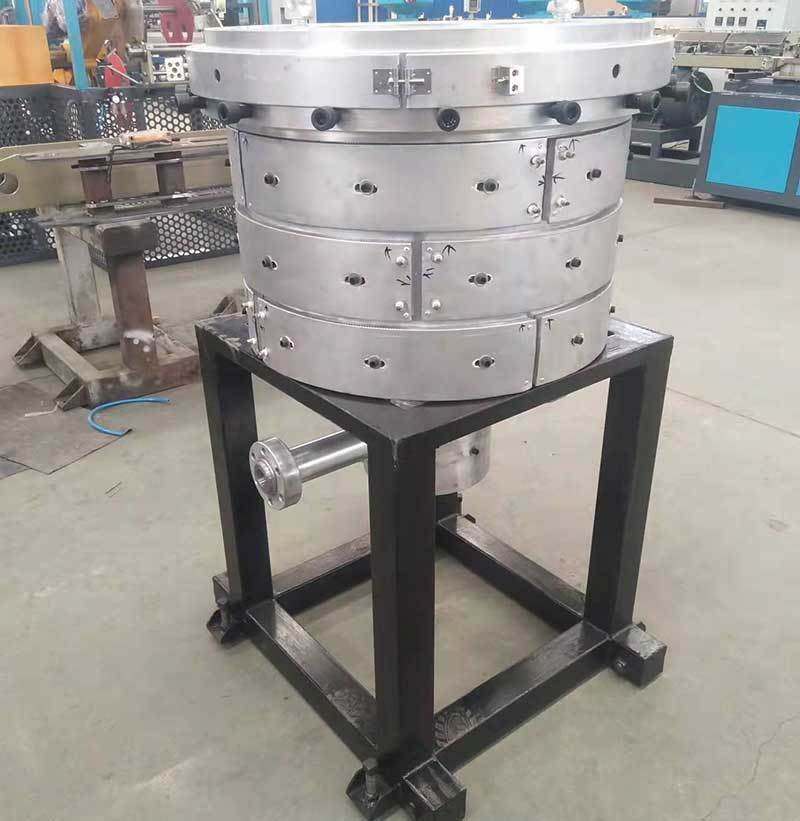

Die-head：
Basic structure form of the Die-head: spiral type(accurate temperature control with intelligent temperature controller)
diameter：500mm
heater power：20kw
Air cooling system
external air ring：single air duct type
external cooling fan power：2.2KW

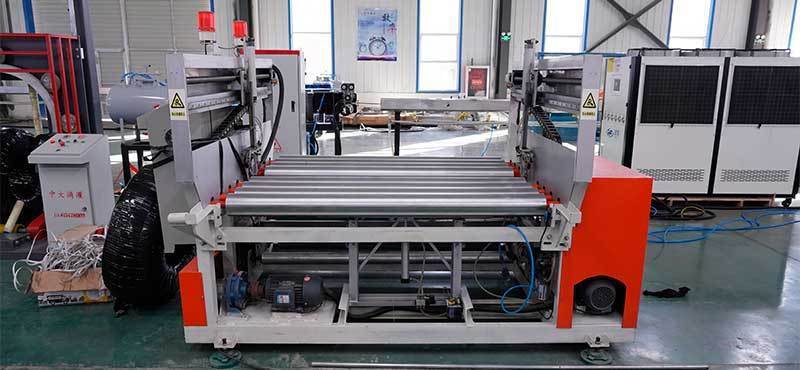

winding machine：
two station winder
Automatic meter control, automatic cutting and Automatic roll changing by manipulator
