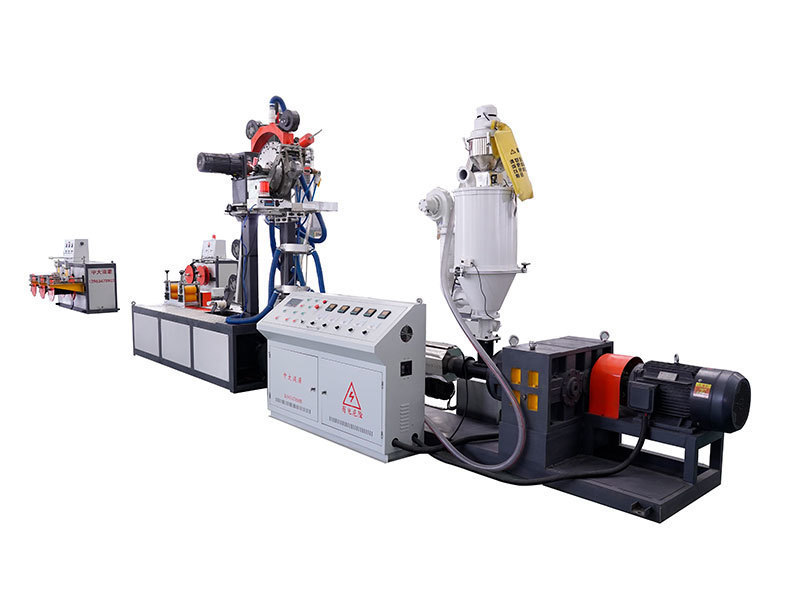

Single blade labyrinth type drip tape production line
Category:
Single Blade Labyrinth Drip Irrigation Tape Making Machine
Enquiry hotline:
E-mail:
whatsapp:
Product details
Product：
|
Name: |
Tape diameter（mm） |
thickness（mm） |
Dripper space(cm) |
|
Drip tape |
16mm |
0.16-0.4mm |
10-100cm |
Wroking condition:
|
humidity |
0-40℃ |
|
Power source |
3 phase 380v, 50Hz |
|
Installation power |
About 120kw |
|
Cooling water |
≤15℃ ≥0.3Mpa ～100L/min |
|
Compressor air |
5m3/h 0.4-0.6Mpa |
|
size |
30*3*2.6m（l*w*h） |
|
Line speed |
0-320m/min |
Production line compositon
|
Name |
|
Every part name |
No. |
|
Inner flat emitter drip irrigation tape production line
|
1 |
Dripper sorting and inserting systerm |
1 |
|
2 |
Automatic material feeding and drying system |
1 |
|
|
3 |
SJ-75×38/1 single screw extruder |
1 |
|
|
4 |
Die-head |
1 |
|
|
5 |
Vacuum sizing tank |
1 |
|
|
6 |
Cooling water tank |
1 |
|
|
7 |
Haul off and punching systerm |
1 |
|
|
8 |
Winding machine |
1 |
|
|
9 |
Electric cabinet |
1 |
|
|
10 |
chiller |
1 |
Main technical parameter：
Automatic material feeding and drying system
Automatic material feeding
Automatic drying

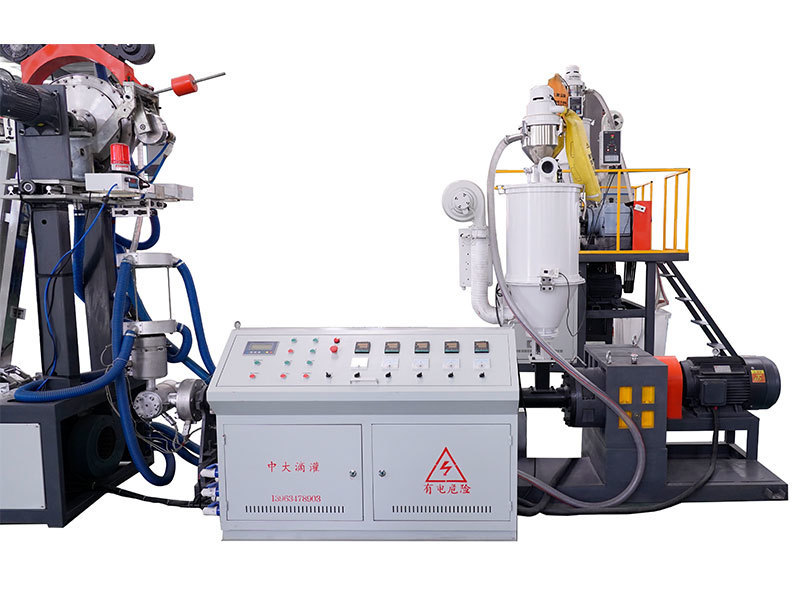

High efficiency extruder：
high output,low energy consumption and low noise
After quenching and tempering and nitriding heat treatment, the screw barrel has the characteristics of high temperature resistance, wear resistance, corrosion resistance and high strength, which greatly increases the service life; Reasonable and unique design of plasticizing section makes the surface of products smooth and glossy.
PLC weight control system：
high-performance PLC man-machine interface control system, and the operation process is convenient and easy to understand.
The weight control system keeps the weight per meter of drip irrigation belt unchanged, and there is no need to frequently adjust the extrusion frequency of the extruder.
Vacuum sizing and cooling system:
Sizing system: width controller
Vacuum system: Ø580mm stainless shaping wheel
cooling systerm: double air ring cooling and water cooling
Single blade labyrinth type drip tape production line

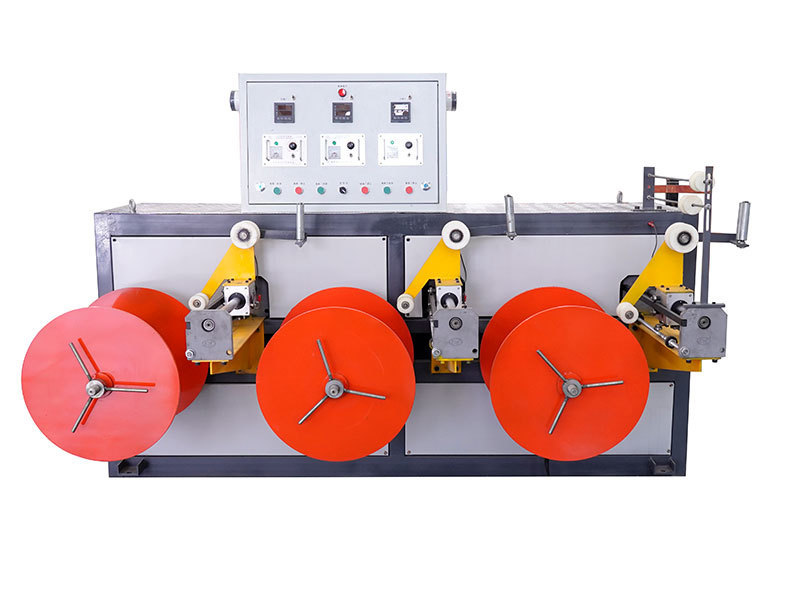

winding machine：
three station winder, manual changing
Automatic meter control, Meter setting: 1000-2000m / roll
